SUPERCHARGED DUCATI MONSTER

Share this Project

About This Project

This bike came to us to be supercharged. It was done previously but whoever did the job had the supercharger turning backwards.

The bike was eventually abandoned by the owner and is still unfinished. It just requires wiring, a small amount of fuel plumbing and tuning.

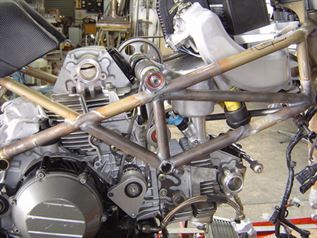

The chassis required some small modification, including the bearing housings for the cross shaft.

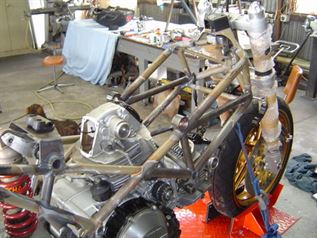

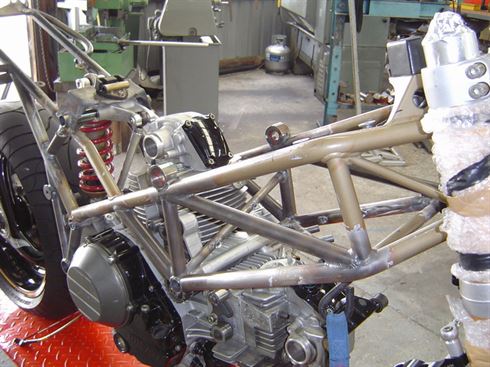

The diagonal tubes were moved out to make some more room.

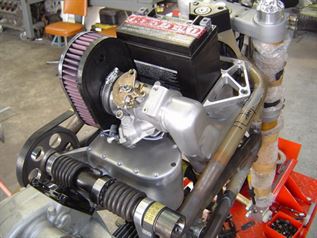

Billet aluminium battery bracket, not shown in the previous pic. These day we would fit a lithium battery.

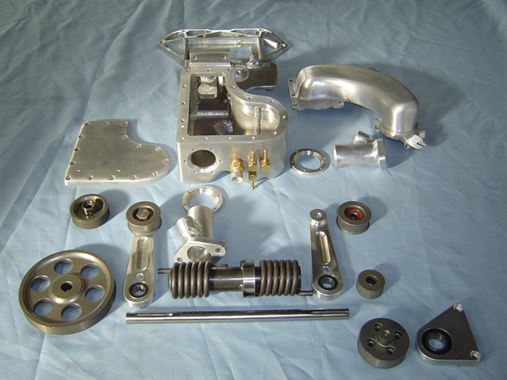

All the parts required.

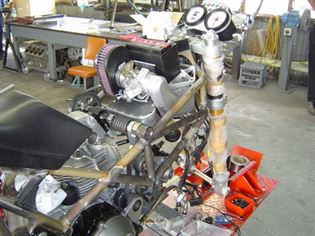

All fits in pretty neat.

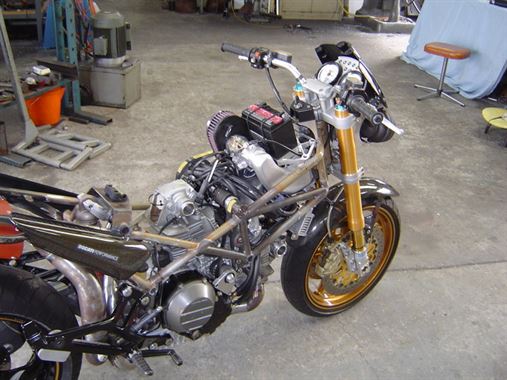

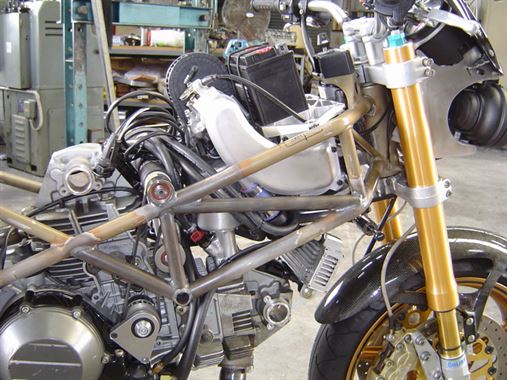

The forks are Ohlins.

The plate on the jackshaft provides additional support for the shaft.

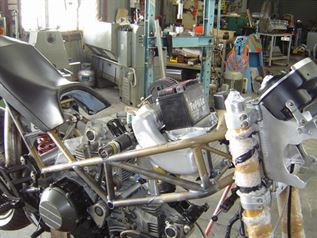

Fuel tank mods to turn a carby bike into EFI.

The hoses in the pulley will eventually be connected to the fuel tank.

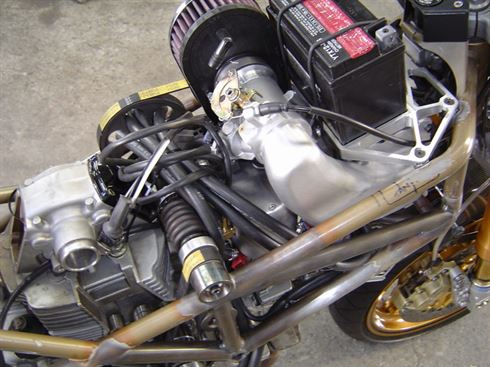

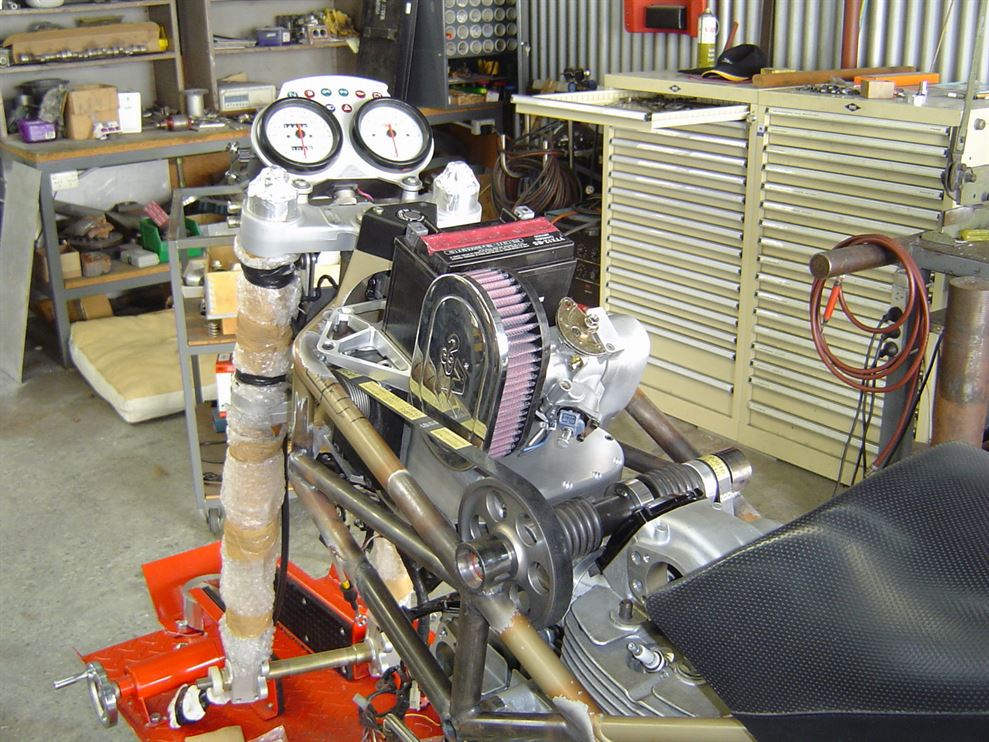

The big springs are over the cross shaft are the tensioners for the two multirib belts.

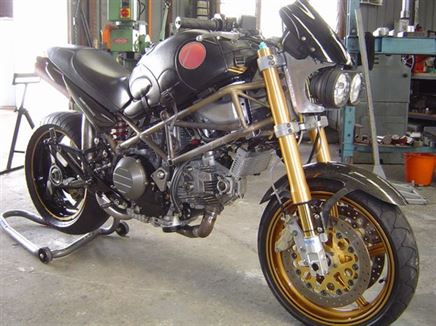

Hard to tell its supercharged.
